Keeping Sump Pump Lines Ice-Free: What Worked for You?
Frozen sump pump discharge lines can lead to basement flooding and costly damage during winter months. This article explores two proven methods for preventing ice buildup in your sump pump system, backed by recommendations from plumbing professionals and experienced homeowners. Learn practical solutions that have helped others protect their homes from winter-related pump failures.
Place Interior Check Valve Above Pump
Operating in the Seattle-Everett corridor, we don't routinely see prolonged subzero events, but hard freezes lasting long enough to lock up poorly designed sump discharges do occur. After correcting dozens of freeze failures over the years, I've found that systems staying operational all share one critical principle: eliminate standing water in exposed portions of the line and protect anything above frost depth.
The most reliable configuration is rigid PVC discharge exiting the foundation with immediate downward slope, then transitioning underground below local frost depth—typically 12-18 inches in Western Washington. From there, it runs to a pop-up emitter or daylight outlet positioned away from the foundation. Burying the line prevents temperature swings from freezing residual water while maintaining proper gravity drainage after every pump cycle.
Where above-ground exposure is unavoidable, such as long side-yard runs, we add self-regulating heat cable rated for wet locations and insulate the pipe with closed-cell foam. The self-regulating style is critical—it adjusts output as temperatures drop and prevents overheating, making it safer for continuous winter operation.
However, the single installation detail making the biggest difference is check valve placement. Many freeze-ups occur because water remains trapped between the pump and exterior discharge. We install a high-quality, quiet-close check valve vertically, 12-18 inches above the pump outlet inside the pit. This allows nearly all discharge water to drain back into the sump basin after each cycle rather than sitting in exterior pipe where it can freeze solid overnight.
On one North Seattle commercial property experiencing repeated winter backups, relocating the check valve and correcting discharge slope alone eliminated freezing issues—even during a multi-day cold snap with nighttime temperatures staying well below freezing.
Freeze prevention requires three fundamentals: immediate downward slope out of the foundation, burying the line below frost depth whenever possible, and proper interior check valve placement to eliminate trapped water. When done correctly, heat cables become secondary safeguards rather than necessities—and the system continues flowing reliably through extreme cold.
Bury Below Frost to Protected Outlet
In subzero weather, the most reliable way I've prevented a sump pump discharge line from freezing is by burying the exterior run below the local frost depth and routing it to a dedicated freeze-resistant outlet, rather than letting it daylight near the foundation. I learned this after a winter where a shallow discharge froze solid during a week-long cold snap, causing water to back up and cycle the pump nonstop. Since then, I always make sure the line maintains continuous downward slope with no low spots where water can sit and freeze. That single change eliminated ice blockages even when temperatures stayed well below freezing.
The installation detail that made the biggest difference was check valve placement inside the basement, positioned vertically and close to the pump. When the valve was too far down the line, residual water sat in the pipe and froze overnight. Moving it closer allowed the line to drain fully after each cycle, keeping it clear through extended cold weather. My advice is to test this in winter by running the pump and confirming the line fully empties—if water lingers, freezing is only a matter of time.
Use Self-Regulating Heat Cable

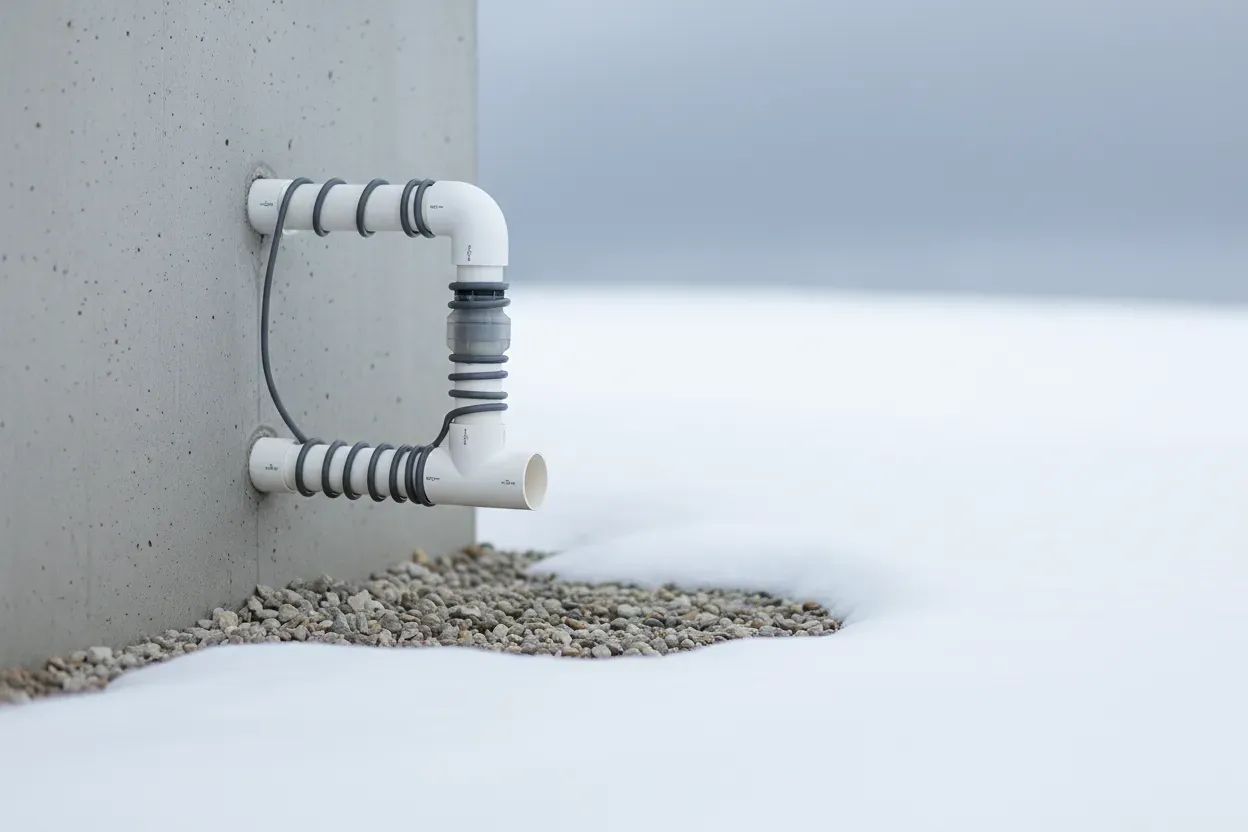

A self-regulating heat cable can keep the discharge line warm and open in deep cold. It adjusts its heat along the line. That saves power and avoids hot spots. Wrap it on the pipe, secure it, and cover it with foam pipe insulation to hold the heat.
Plug it into a GFCI outlet and use a thermostat or plug with a sensor for safe control. Keep the cable off the check valve and do not cross or overlap the runs to prevent damage. Get a rated heat cable and install it now before the next freeze.
Maintain Continuous Downward Fall
A steady downward slope lets water drain out so nothing sits and freezes. The line should leave the house going down and keep dropping all the way to the outlet. Remove low spots by adding hangers or supports so the pipe does not sag. If the pipe is buried, set the grade with a string line and aim for a gentle fall to daylight.
Shorten flat runs near the house to cut down on standing water behind the check valve. After a pump cycle, look at the discharge point to make sure water clears the pipe. Check the slope this weekend and fix any dips before cold weather returns.
Upgrade to Smooth Oversized Pipe
A larger, smooth-walled pipe lets water move out faster and lowers the chance of an ice plug. Smooth PVC or ABS sheds slush and ice better than corrugated hose with ridges. Upsizing the line and using long, gentle bends reduces strain on the pump. Fewer sharp turns also mean fewer spots where ice can grab.
Match the pipe size to the pump outlet with the right adapter and avoid narrow sections. This setup can lower noise, boost flow, and keep the line clear in cold snaps. Upgrade the discharge line to a smooth, larger pipe before temperatures drop.
Add Freeze-Guard Bypass near House
A freeze-guard bypass gives the pump a second path if the main line ices up. It uses a small relief valve or a tee near the house that opens when pressure builds. When the line thaws, the valve closes and flow goes back to the normal route. Point the bypass outlet away from the foundation with a short hose or a splash block.
Place it before the outside run and after the check valve so it only opens under stress. Test it by running the pump and watching for clean flow from the backup port. Add a freeze-guard bypass now so the pump can still work during hard freezes.
Shield the Discharge Exit from Wind
A strong wind speeds up freezing at the outlet. Shielding that spot helps a lot. Place the discharge in a nook, behind a fence panel, or near evergreen shrubs to cut wind. A short hood or a downward elbow can also block cold gusts and keep spray off the opening.
Aim the water onto a splash plate or into a gravel trench so it does not pool and refreeze. Keep the outlet above ground and clear of snow banks so air and water can move. Move the outlet to a sheltered spot and add a simple shield before the next cold snap.
